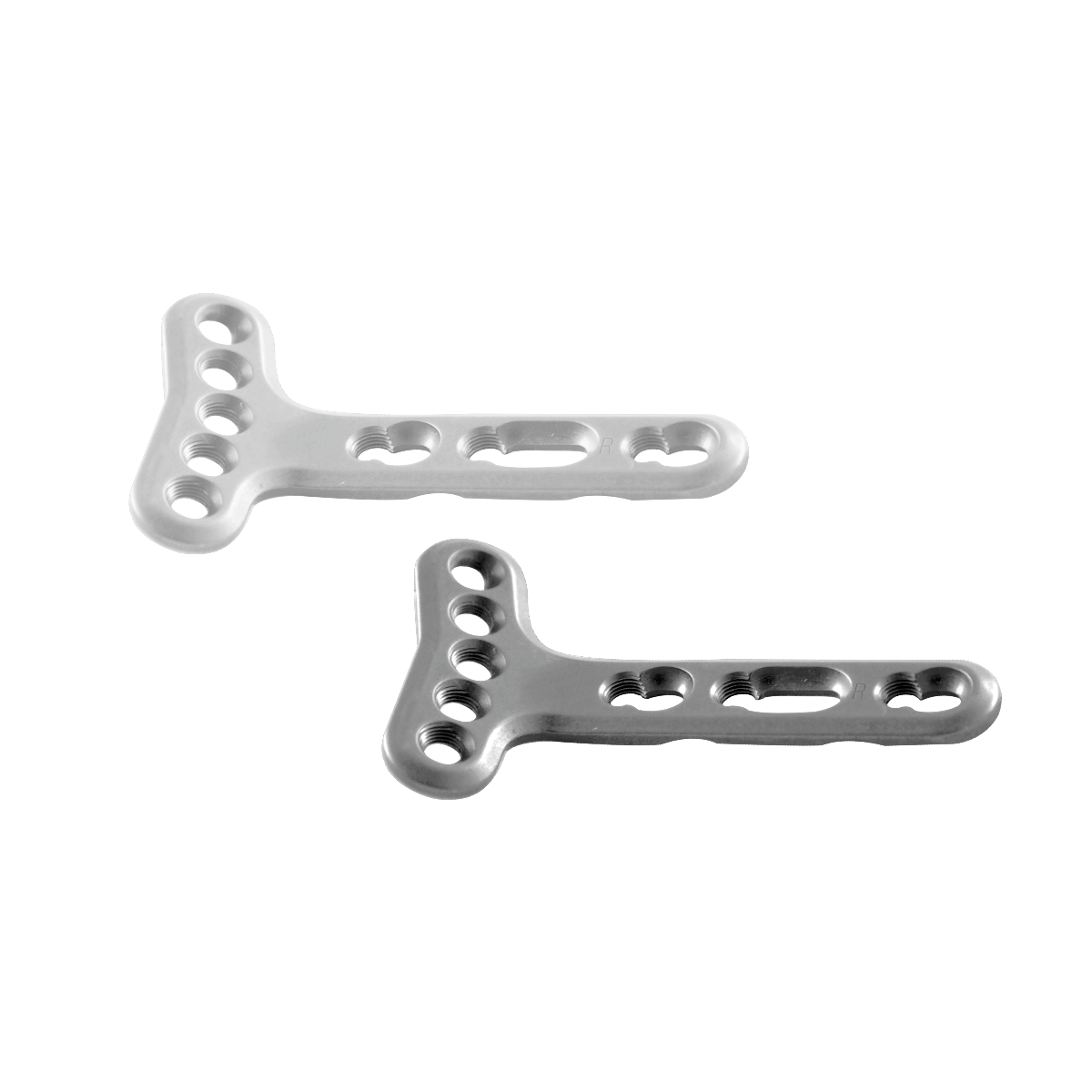

Locking Extra - Articular Small T - Plate 2.7mm (Head 5 Holes)

Indications:

Following Screws are to be use with Above Plates:

A) 2.7 mm Locking Head Screw – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
101.310 to 101.350	10mm to 50mm	Ti.101.310 to Ti.101.350

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
101.410 to 101.450	10mm to 50mm	Ti.101.410 to Ti.101.450

B) Cortical Screw 2.7mm Dia. – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
101.106 to 101.140	6mm to 40mm	Ti.101.106 to Ti.101.140

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
101.710 to 101.740	10mm to 40mm	Ti.101.710 to Ti.101.740

Following Instruments to be use with above Plate:

Cat No.	Description
260.210	Drill Bit – S.S. Quick Coupling End Dia. 2.0mm X 140mm Long
264.020	Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm
301.024	Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking Head screws)
301.031	Hexagonal Screw Driver 2.0mm Tip – Silicon Handle
301.040	Small Hexagonal Screw Driver 2.0mm Tip – Silicon Handle
311.004	Mini Depth Gauge (Measuring Length 40mm)
804.120	LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122	Tap for 2.7mm Locking Head Screws
804.162	Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm)
804.166	Hexagonal Screw Driver Q.C.End Shaft – 2.0mm Tip (for Torque Handle 0.8Nm)
XP.301.080	Star Drive Screw Driver 2mm Tip/T-8

Following Size of Locking Extra – Articular Small T – Plate 2.7mm (Head 5 Holes) are available in Stainless Steel & Titanium Material.
