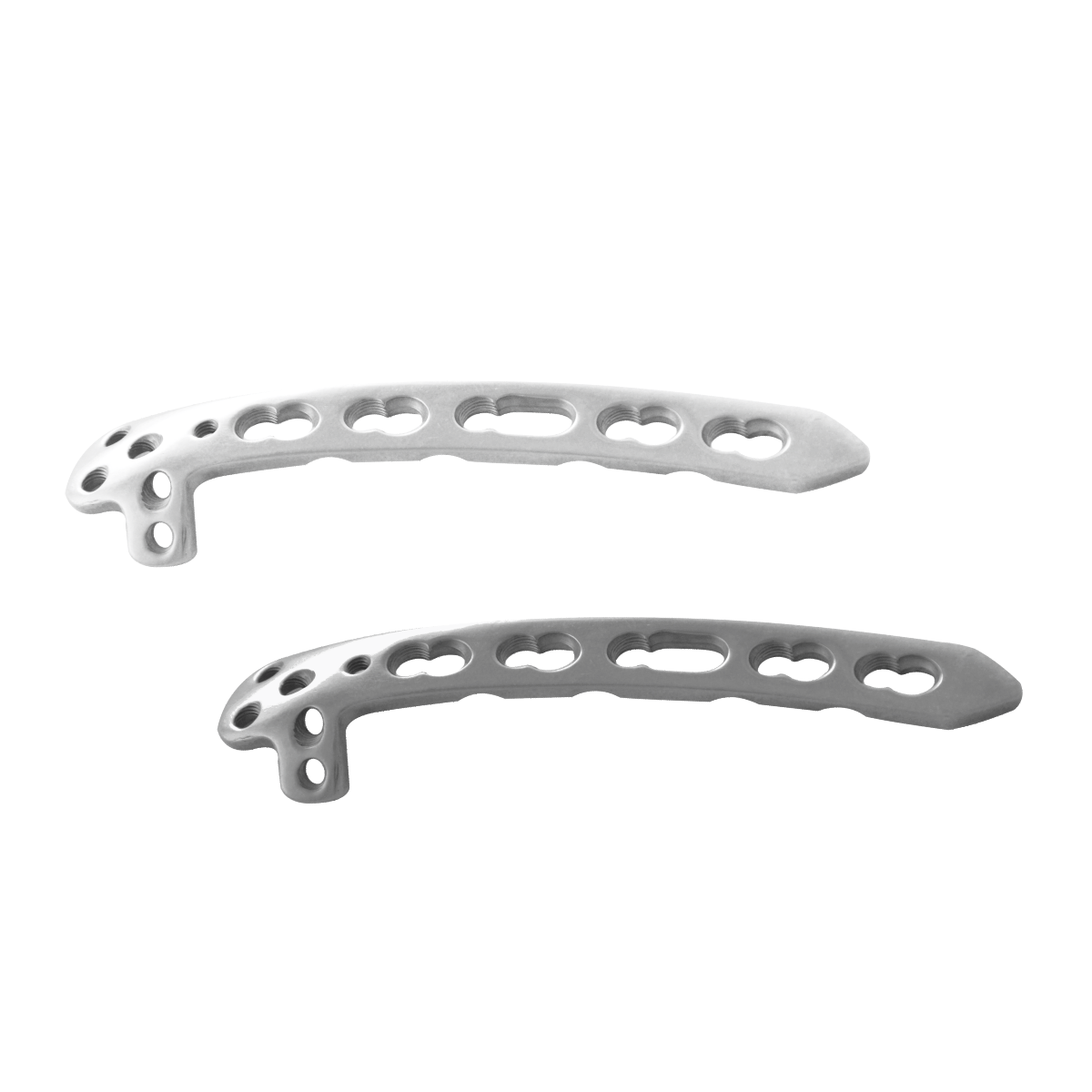

Locking Distal Humerus Plate (DHLP) Lateral Side With Support 2.7 / 3.5mm

LOCKING-DISTAL-HUMERUS-PLATE-DHLP-LATERAL-SIDE-WITH-SUPPORT-2.7-3.5MM
Send Enquiry
Return to Sub Category
Return to Main Category

Indications:

  • Intra – Articular Fractures of the Distal Humerus.

  • Comminuted Supracondylar Fractures of the Distal Humerus.

  • Osteotomies of the Distal Humerus.

  • Nonunions of the Distal Humerus.

(Two Plate Technique for the Distal Humerus).

Categories: ,

Description

Following Screws are to be use with Above Plates:

A) 3.5mm Locking Head Screw – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
102.310 to 102.380 10mm to 80mm Ti.102.310 to Ti.102.380
Stainless Steel Star Drive Titanium
Cat No. Size Cat No.
102.410 to 102.480 10mm to 80mm Ti.102.410 to Ti.102.480

B) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
102.210 to 102.296 10mm to 100mm Ti.102.210 to Ti.102.300

C) 2.7mm Locking Head Screw – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
101.310 to 101.350 10mm to 50mm Ti.101.310 to Ti.101.350
Stainless Steel Star Drive Titanium
Cat No. Size Cat No.
101.410 to 101.450 10mm to 50mm Ti.101.410 to Ti.101.450

D) Cortical Screw 2.7mm Dia. Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
101.106 to 101.140 6mm to 40mm Ti.101.106 to Ti.101.140
Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
101.710 to 101.740 10mm to 40mm Ti.101.710 to Ti.101.740

Following Instruments to be use with above Plate:

Cat No. Description
260.281 Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110 LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121 Tap for 3.5mm Locking Head Screws
804.163 Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168 Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250 Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025 Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm
260.270 Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
264.037 Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm
301.040 Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.026 Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws)
301.025 Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws)
303.010 Small Depth Gauge
XP.301.081 Star Drive Screw Driver – 2.5mm Tip/T-15
260.210 Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
264.020 Bone Tap – Quick Coupling End Dia. 2.7mm, Thread Length 33mm, Total Length 100mm
301.024 Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.4 mm Cortical, Locking & 2.7mm Locking Head Screw)
301.031 Hexagonal Screw Driver 2.0mm Tip – Silicon Handle
301.040 Small Hexagonal Screw Drive 2.5mm Tip – Silicon Handle
311.004 Mini Depth Gauge (Measuring length 40mm)
804.120 LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122 Tap for 2.7mm Locking Head Screws
804.162 Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm)
804.166 Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm)
XP.301.080 Star Drive Screw Driver 2mm Tip/T-8

Following Size of Locking Distal Humerus Plate (DHLP) Lateral Side With Support 2.7 / 3.5mm are available in Stainless Steel & Titanium Material.

Cat No. (Stainless Steel) Holes (Left) Cat No. (Titanium)
862.213 3 Holes Ti.862.213
862.215 5 Holes Ti.862.215
862.217 7 Holes Ti.862.217
862.219 9 Holes Ti.862.219
Cat No. (Stainless Steel) Holes (Right) Cat No. (Titanium)
862.203 3 Holes Ti.862.203
862.205 5 Holes Ti.862.205
862.207 7 Holes Ti.862.207
862.209 9 Holes Ti.862.209
