Description
Following Screws are to be use with Above Plates:
A) 2.7 mm Locking Head Screw – Self Tapping
| Stainless Steel |
Hex Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| – |
10mm to 50mm |
Ti.101.310 to Ti.101.350 |
| Stainless Steel |
Star Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| – |
10mm to 50mm |
Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel |
Hex Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| – |
6mm to 40mm |
Ti.101.106 to Ti.101.140 |
| Stainless Steel |
Star Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| – |
10mm to 40mm |
Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. |
Description |
| 260.210 |
Drill Bit – S.S. Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 |
Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 |
Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking Head screws) |
| 301.031 |
Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 |
Small Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 311.004 |
Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 |
LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 |
Tap for 2.7mm Locking Head Screws |
| 804.162 |
Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 |
Hexagonal Screw Driver Q.C.End Shaft – 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 |
Star Drive Screw Driver 2mm Tip/T-8 |

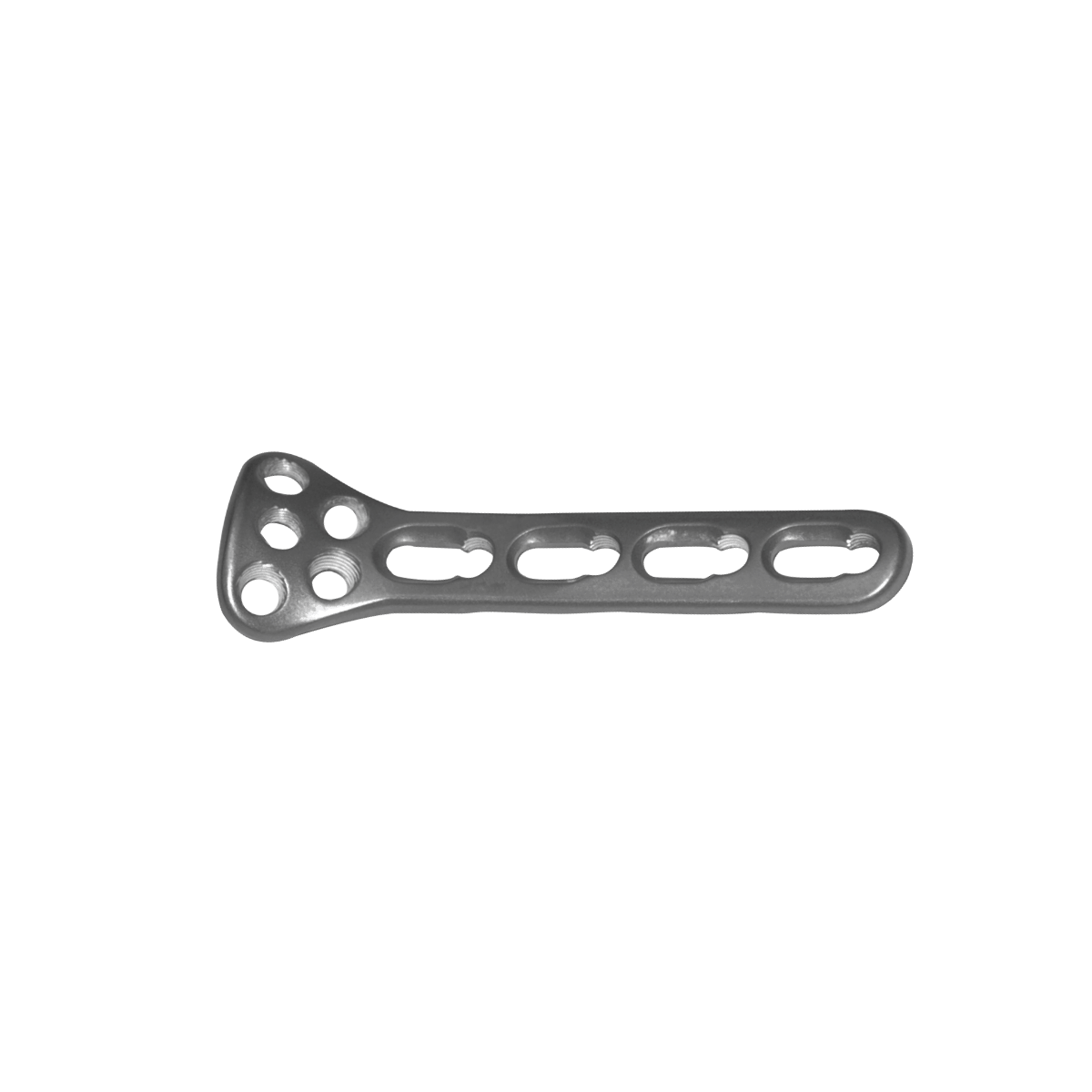

Following Size of Locking Proximal Radial Head Neck Plate 2.7mm are available in Titanium Material.
| Cat No. (Left) |
Holes (Titanium) |
Cat No. (Right) |
| Ti.872.002 |
2 Holes |
Ti.872.102 |
| Ti.872.003 |
3 Holes |
Ti.872.103 |
| Ti.872.004 |
4 Holes |
Ti.872.104 |
| Ti.872.005 |
5 Holes |
Ti.872.105 |
