Description

Cat No.
IS.111

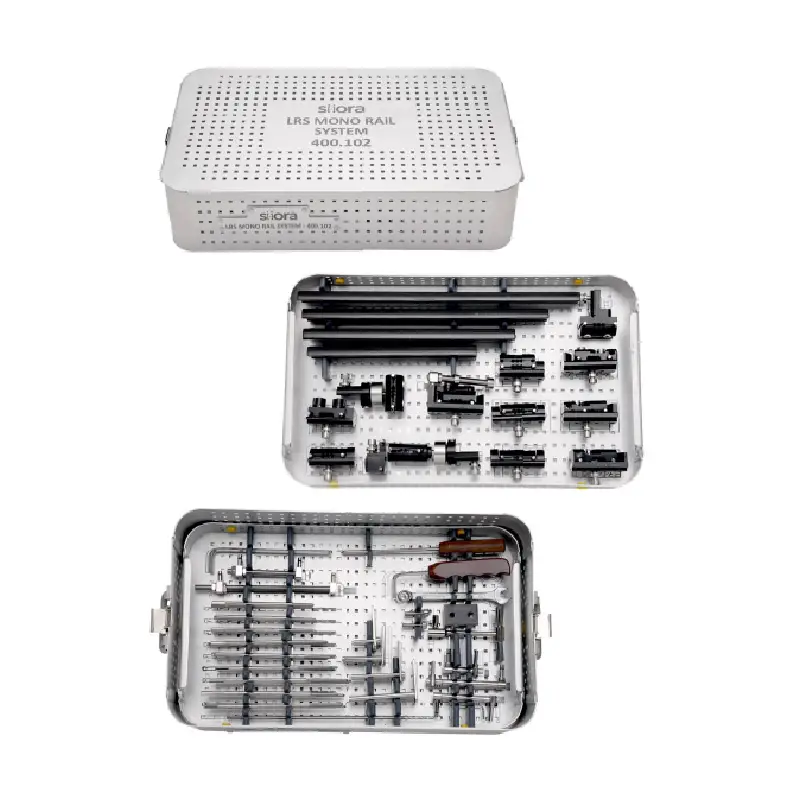

LRS Mono Rail Graphic Set Units
205.605 RAIL Length 240mm 1
205.610 RAIL Length 300mm 1
205.615 RAIL Length 350mm 1
205.620 RAIL Length 400mm 1
205.625 Central  Clamp 2
205.630 End  Clamp 2
205.635 Swivel  Clamp 1
205.640 Ball Joint  Coupling Clamp 1
205.645 T – Ball Joint Coupling Clamp 1
205.650 T – Clamp 1
205.655 Dyna Clamp 1
205.660 Sandwich  Clamp 1
205.665 Graduated  Swivel Clamp 1
205.670 Template For End  & Central Clamp 1
205.675 Template For  Swivel Clamp 1
205.101 C-D Unit, Length 40mm 1
205.102 C-D Unit, Length 80mm 1
205.103 C-D Unit, Length 100mm 1
205.110 Trocar With Fiber Handle (For Rail Fixator) 1
205.112 Drill Guide O/D 6.0mm X I/D 5.0mm X 40mm Length 3
205.114 Drill Guide O/D 6.0mm X I/D 5.0mm X 80mm Length 3
205.116 Screw Guide O/D 8.0mm X I/D 6.0mm X 60mm Length 3
205.118 Screw Guide O/D 8.0mm X I/D 6.0mm X 100mm Length 3
205.120 Transport Device Unit, Length 100mm 1
205.125 Transport  Device Unit, Length 200mm 1
205.122 Tapered Threaded Pin Introducer 1
205.203 Allenkey 6.0mm Tip 1
205.429 Spanner – 13mm Wrench 1
260.615 Twisted Graduated Drill Bit dia 4.8 X 305mm Length 1
205.204 Hex Screw Driver – L Bend 6.0mm Hex Tip 1
205.656 Sandwitch Plate 1
205.657 Allen Bolt For Sandwitch Plate 2
205.310 Tapered Threaded Pins Cortical Shaft 6.0mm, Tapered 6.0 To 5.0mm Total Length 150mm, Thread Length 30mm 3
205.311 Tapered Threaded Pins Cortical Shaft 6.0mm, Tapered 6.0 To 5.0mm Total Length 150mm, Thread Length 40mm 3
205.312 Tapered Threaded Pins Cortical Shaft 6.0mm, Tapered 6.0 To 5.0mm Total Length 150mm, Thread Length 50mm 3
205.320 Tapered Threaded Pins Cortical Shaft 6.0mm, Tapered 6.0 To 5.0mm Total Length 170mm, Thread Length 40mm 3
205.321 Tapered Threaded Pins Cortical Shaft 6.0mm, Tapered 6.0 To 5.0mm Total Length 170mm,Thread Length 50mm 3
205.322 Tapered Threaded Pins Cortical Shaft 6.0mm, Tapered 6.0 To 5.0mm Total Length 170mm, Thread Length 60mm 3
205.330 Tapered Threaded Pins Cortical Shaft 6.0mm, Tapered 6.0 To 5.0mm Total Length 200mm, Thread Length 40mm 3
205.331 Tapered Threaded Pins Cortical Shaft 6.0mm, Tapered 6.0 To 5.0mm Total Length 200mm, Thread Length 50mm 3
205.332 Tapered Threaded Pins Cortical Shaft 6.0mm, Tapered 6.0 To 5.0mmTotal Length 200mm, Thread Length 60mm 3
400.102 Graphic Aluminium Box For LRS Monorail 1
