Description
Following Screws are to be use with Above Plates:
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel |
Hex Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| 102.310 to 102.380 |
10mm to 80mm |
Ti.102.310 to Ti.102.380 |
| Stainless Steel |
Star Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| 102.410 to 102.480 |
10mm to 80mm |
Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel |
Hex Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| 105.512 to 105.580 |
12mm to 80mm |
Ti.105.512 to Ti.105.580 |
| Stainless Steel |
Star Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| 105.612 to 105.680 |
12mm to 80mm |
Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel |
Hex Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| 102.210 to 102.296 |
10mm to 100mm |
Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel |
Hex Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| 104.010 to 104.085 |
10mm to 85mm |
Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel |
Hex Drive |
Titanium |
| Cat No. |
Size |
Cat No. |
| 105.010 to 105.085 |
10mm to 85mm |
Ti.105.010 to Ti.105.085 |
Following Instruments to be use with above Plate:
| Cat No. |
Description |
| 260.281 |
Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 |
LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 |
Tap for 3.5mm Locking Head Screws |
| 804.163 |
Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 |
Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 |
Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 |
Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm |
| 260.270 |
Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 |
Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.040 |
Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.026 |
Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) |
| 301.025 |
Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) |
| 303.010 |
Small Depth Gauge |
| XP.301.081 |
Star Drive Screw Driver – 2.5mm Tip/T-15 |

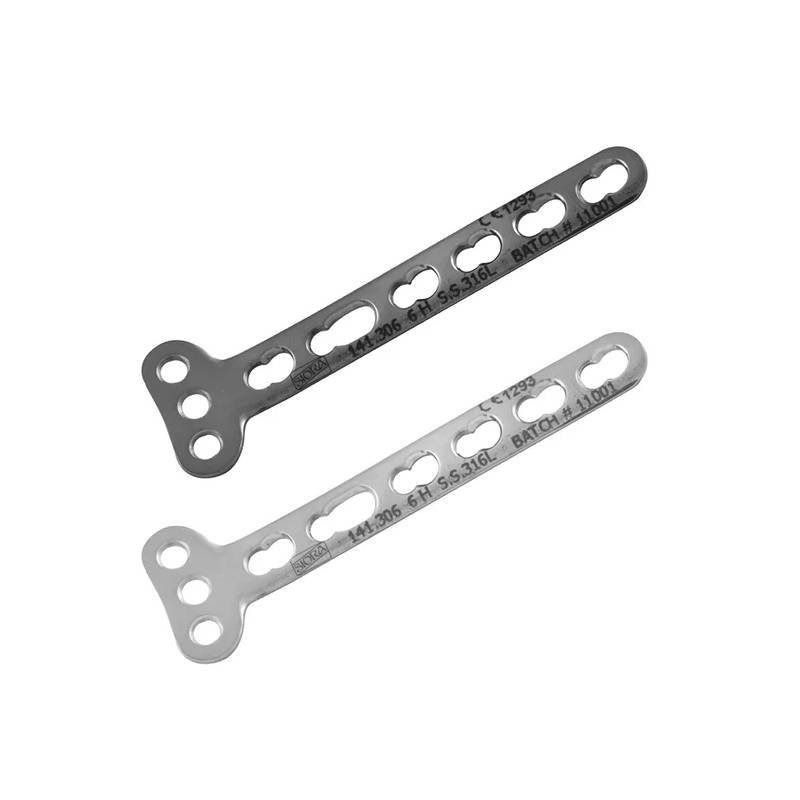

Following Size of 3.5 MM Locking T – Plate Right Angled are available in Stainless Steel & Titanium Material.
| Cat No. (Stainless Steel) |
Holes |
Cat No. (Titanium) |
| 141.303 |
3 Holes |
Ti.141.303 |
| 141.304 |
4 Holes |
Ti.141.304 |
| 141.305 |
5 Holes |
Ti.141.305 |
| 141.306 |
6 Holes |
Ti.141.306 |
| 141.307 |
7 Holes |
Ti.141.307 |
| 141.308 |
8 Holes |
Ti.141.308 |
| 141.309 |
9 Holes |
Ti.141.309 |
